The DYNAMIC series convinces by highest performance and accuracy as well as special reliability and longevity. The mechanical stability of the machines is characterized by their robust gantry design and powerful drives. Various options with swivel rotary tables and fork milling heads allow the complete machining of your workpieces in a 5-axis simultaneous machining. Due to the ball screw spindles and linear guides used, the machine meets the highest accuracy requirements and achieves the highest dynamics with rapid traverses of 40 m/min.
| Working Area | |
|---|---|
| Travel ranges X / Y / Z | 1,000 / 800 / 600 mm |
| Feedrate / Rapid traverse X / Y / Z | 40 m/min |
| Acceleration X / Y / Z | 5 m/s² |
| Clamping surface | 1,200 x 1,000 mm |
| Table load, max. | 3,000 kg |
| No. of T-slots x width x pitch | 10 x 18 mm x 100 mm |
| CONTROL | |
| SIEMENS 840D, HEIDENHAIN iTNC 640, FANUC 31i | |
| Spindle | |
| Power (S1 / S6) | 34 / 43 kW |
| Torque (S1 / S6) | 170 / 220 Nm |
| Tool taper | HSK-A100 |
| Nominal speed | 2,000 rpm |
| Max. speed | 12,000 rpm |
| Further spindle options | see down below |
| ACCURACY ACC. VDI / DGQ 3441 | |
| Positioning accuracy X / Y / Z | 0.008 mm |
| Repeatability X / Y / Z | 0.005 mm |
| TOOL MAGAZINE | |
| No. of pockets | 30 |
| Max. tool weight | 6,5 kg |
| Max. tool length | 380 mm |
| Max. tool diameter | 80 mm/ 115 mm (if adjacent spaces empty) |
Our DYNAMIC series with its swivel rotary tables is equipped with everything you need for 5-axis machining. Optionally, the tables are available in a Mill-Turn-version.
| Working Area | ||
|---|---|---|
| Diameter | Ø 600 mm | Ø 800 mm |
| Speed | 100 rpm | 30-300 rpm |
| Torque | 628/1,000 Nm | 800/350 Nm |
| Max. table load | 3,000 kg | 1,000 kg |
| Max. size of workpiece | Ø 600 x 470 mm | Ø 800 x 500 mm |
| No. of T-Slots x Width x Pitch | 8 x 18 mm x 62.5 mm | - |
| Accuracy acc. VDI/GDQ 3441 | ||
| Positioning accuracy C-Axis | 10 " | 10" |
| Repeat accuracy C-Axis | 6" | 6" |
| Positioning accuracy A-Axis | 12" | 12" |
| Repeat accuracy A-Axis | 8" | 8" |
Our DYNAMIC series is already equipped in the standard version with everything you need for dynamic 5-axis machining. Of course you can configure it with a variety of options.
Standard equipment DYNAMIC 1008
Options
Our motor spindles impress with fast run-up times and highest quality. Innovative sensor technology permanently monitors the milling process and ensures trouble-free production. Optimum heat dissipation is guaranteed by the optimised machine design and the water cooling system integrated into the spindle. In addition to the standard main spindle, other spindle variants are available as an option.
Highlights main spindle:

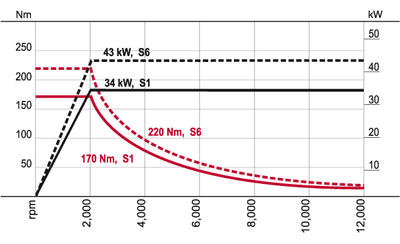

| Spindel CS-34-180-S | |
|---|---|
| Power (S1 / S6) | 34 / 43 kW |
| Torque (S1 / S6) | 170 / 220 Nm |
| Tool taper | HSK-A100 |
| Nominal speed | 2,000 rpm |
| Max. speed | 12,000 rpm |
| Further spindle options | see down below |
Our motor spindles impress with fast run-up times and highest quality. Innovative sensor technology permanently monitors the milling process and ensures trouble-free production. Optimum heat dissipation is guaranteed by the optimised machine design and the water cooling system integrated into the spindle. In addition to the standard main spindle, other spindle options are available for you.
| Power S1 | 28 kW |
| Power S6 | 35 kW |
| Torque S1 | 90 Nm |
| Torque S6 | 113 Nm |
| Lubrication | Grease/Oil/Air |
| Tool taper | HSK-A63 |
| Nominal speed | 2,000 rpm |
| Max. speed | 20,000 rpm |
| Power S1 | 27 kW |
| Power S6 | 32 kW |
| Torque S1 | 130 Nm |
| Torque S6 | 170 Nm |
| Lubrication | Grease |
| Tool taper | HSK-A100 |
| Nominal speed | 2,000 rpm |
| Max. speed | 12,000 rpm |
| Power S1 | 34 kW |
| Power S6 | 43 kW |
| Torque S1 | 170 Nm |
| Torque S6 | 220 Nm |
| Lubrication | Grease |
| Tool taper | HSK-A100 |
| Nominal speed | 2,000 rpm |
| Max. speed | 12,000 rpm |
| Power S1 | 40 kW |
| Power S6 | 51 kW |
| Torque S1 | 67 Nm |
| Torque S6253 | 85 Nm |
| Lubrication | Grease |
| Tool taper | HSK-A63 |
| Nominal speed | 5,700 rpm |
| Max. speed | 24,000 rpm |
| Power S1 | 42 kW |
| Power S6 | 53 kW |
| Torque S1 | 201 Nm |
| Torque S6 | 253 Nm |
| Lubrication | Grease |
| Tool taper | HSK-A100 |
| Nominal speed | 2,000 rpm |
| Max. speed | 12,000 rpm |
| Power S1 | 40 kW |
| Power S6 | 50 kW |
| Torque S1 | 160 Nm |
| Torque S6 | 200 Nm |
| Lubrication | Grease |
| Tool taper | HSK-A100 |
| Nominal speed | 2,400 rpm |
| Max. speed | 15,000 rpm |
| Power S1 | 50 kW |
| Power S6 | 64 kW |
| Torque S1 | 240 Nm |
| Torque S6 | 300 Nm |
| Lubrication | Grease |
| Tool taper | HSK-A100 |
| Nominal speed | 2,000 rpm |
| Max. speed | 8,000 rpm |
| Power S1 | 70 kW |
| Power S6 | 90 kW |
| Torque S1 | 85 Nm |
| Torque S6 | 105 Nm |
| Lubrication | Oil/Air |
| Tool taper | HSK-A63 |
| Nominal speed | 8,000 rpm |
| Max. speed | 24,000 rpm |
